Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results

Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results
Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results
Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results

Duży Obraz :  Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results

Szczegóły Produktu:
Miejsce pochodzenia: Chiny
Nazwa handlowa: INNOVO
Orzecznictwo: CE
Numer modelu: ZGFM-1500D/1700D
Zapłata:
Minimalne zamówienie: 1 zestaw
Cena: USD45000-60000
Szczegóły pakowania: Żelazna paleta i opakowanie foliowe
Czas dostawy: 20-30 dni
Zasady płatności: L/C, T/T
Możliwość Supply: 30 zestawów/miesiąc
Kontakt

Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results

Opis
Dostawa dostosowana: Jako żądanie klienta Skończony czas: Około 20 dni roboczych
Maksymalna prędkość robocza: 180 metrów na minutę i 17000 arkuszy na godzinę Max dolna grubość karmienia arkusza: Flet 8-10mm
Min Rozmiar płyty: 38*40 cm i 40*40 cm Dokładność kija: ± 1,0 mm
Maksymalny rozmiar papieru: 170*170 cm Moc: 22 kW, 25 kW, 27 kW, 30 kW
Podkreślić:

automatic flute laminator machine with warranty

,

high speed corrugated paperboard laminator

,

litho laminating machine for paperboard

Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results
High-Performance Corrugated Paperboard Lamination Solution
The Professional Automatic High Speed Flute Laminator Machine delivers superior performance for corrugated paperboard lamination. This industrial-grade solution handles a wide range of materials from 180-800g/m thin paper to 0.5-10mm paperboard, including single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, and styrofoam board.
Key Features
  • Maximum speed of 17,000 sheets per hour (180m/min)
  • Handles materials from 180-800g/m thin paper to 10mm flute board
  • Customizable configurations to meet specific production requirements
  • Touch screen automatic adjustment system
  • Maximum paper size: 170×170cm
  • Precision lamination with ±1.0mm stick accuracy
Technical Specifications
Parameter Specification
Max Bottom Sheet Feeding Thickness About 10mm Flute
Applicable Materials 180-800g/m thin paper, cardboard, 0.5-10mm paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board
Stick Accuracy ±1.0mm
Min Board Size 36×38cm and 38×40cm
Adjust Type Automatic By Touch Screen
Laminating Type Corrugated+cardboard
Dimensions 16300×2400×2550mm
Max Speed 17000sheet/hour (180m/min)
Advanced Structural Features
This laminator incorporates world-class engineering including a leading transmission control system, computerized high-speed fitting, Chuanliu-type air supply head, Feida Block with low stack cardboard, multiple sets of electric eyes for paper alignment, full-function electronic control system, and automatic glue replenishment system.

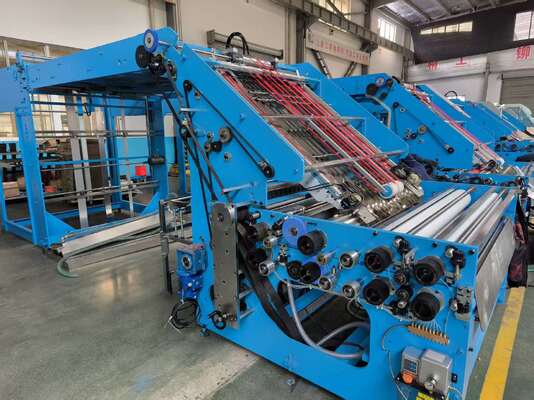

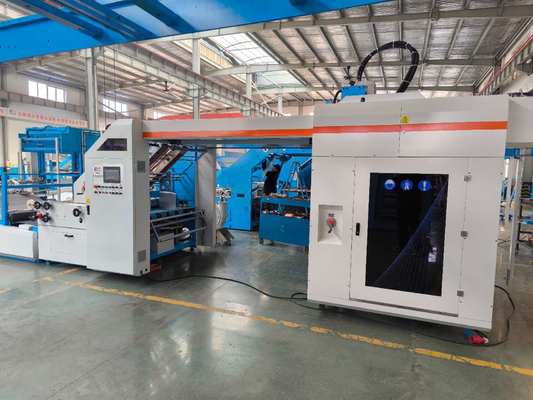

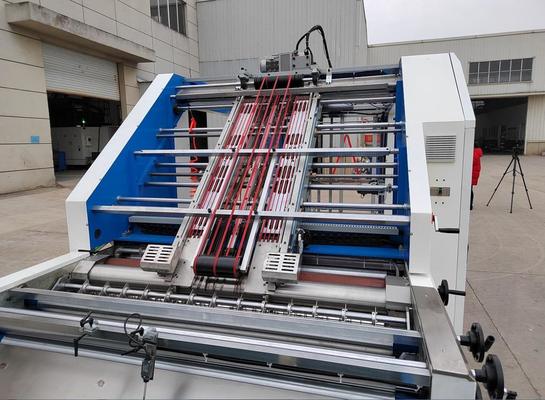

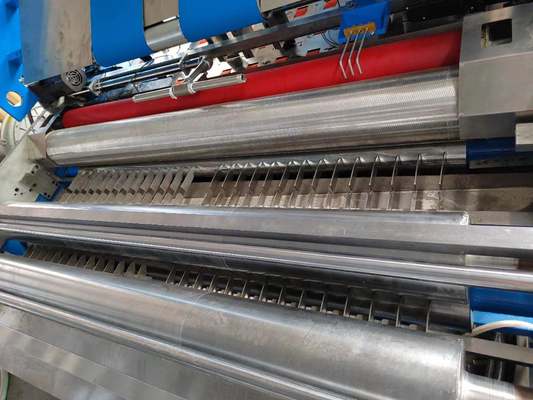

Product Images
Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results 0 Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results 1 Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results 2 Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results 3 Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results 4 Automatic Flute Laminator Machine Delivering High Speed Corrugated Paperboard Lamination and Litho Laminating Results 5
Support & Services
Our comprehensive support package includes installation assistance, operator training, troubleshooting, and maintenance services to ensure optimal machine performance throughout its lifecycle.
Packaging & Shipping
The machine is securely packaged with protective materials and shipped via reliable carriers. Standard packaging includes iron pallet and film wrapping to ensure safe transportation.
Frequently Asked Questions
What is the brand and model of this machine?
This is the INNOVO Automatic Flute Laminator Machine, model ZGFM1700 with CE certification.
Where is this machine manufactured?
The machine is manufactured in China to international quality standards.
What are the payment terms?
We accept L/C and T/T payment methods with a minimum order quantity of 1 set.
